If you are using Vensim PLE or PLE Plus there is no Model Variable Tool.  Just enter widgets per person and new customers as shadow variables then add the remaining variables.

ØSelect the Model Variable tool.  Click on the view and select the variable new customers then press Enter.

This adds new customers and its causes to the view.  The causes will be on top of one another, so we need to rearrange them for clarity.

ØUsing the Move/Size tool (or the currently selected Model Variable tool), rearrange the variables so they sit on the left of new customers.
ØSelect the Model Variable tool.  Click on the shadow variable widgets per person.

This will turn the shadow variable into a normal variable.  Because it is a Constant, there are no causes connected to widgets per person.

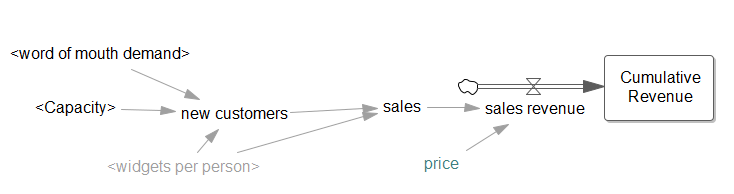

ØAdd the variables and arrows as shown in the diagram below:

If you are using PLE or PLE Plus your diagram will appear as:
