ØUse the Graph tool or the Causes Strip graph to investigate behavior of key variables, such as Potential Customers, Customers, and new customers (as well as any other variables that you want to see).

If you opened the existing cust2.mdl rather than creating your own, you will notice that the only results displayed are those for the current dataset (cust2).  Use the Control Panel Datasets tab to load cust1.

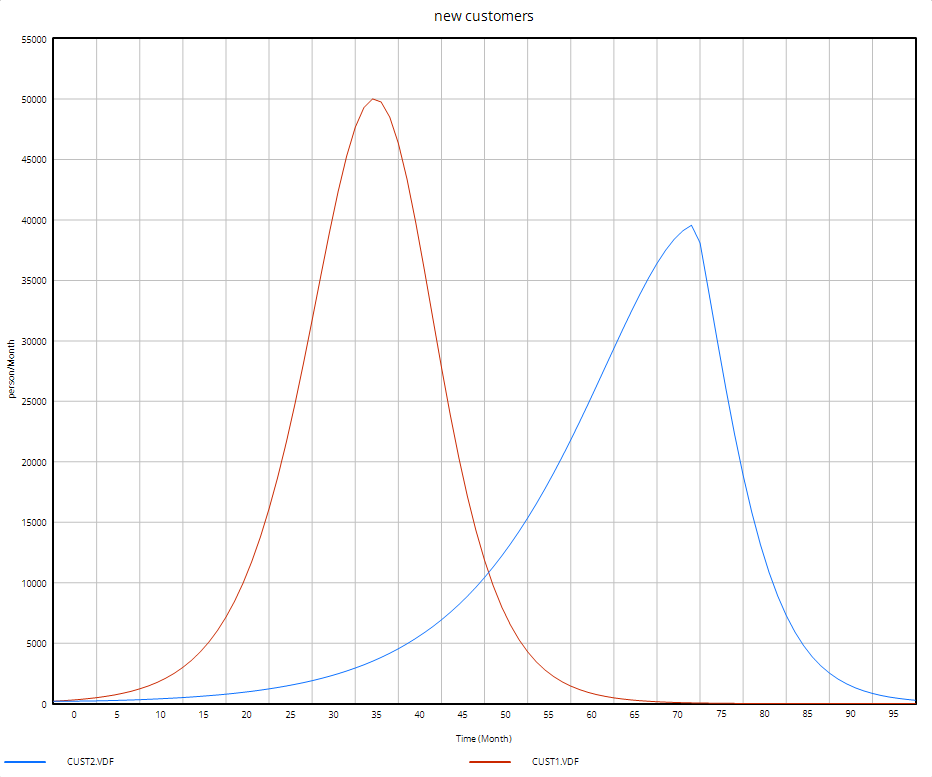

ØSelect the variable new customers as the Workbench Variable and click on the Graph tool.

NOTE cust1 has stored results for all the variables in cust1.mdl and does not have any results for the variables unique to our new model.  If you ask to see a graph for a variable not in the original model you will only see results from the run cust2.

We notice a difference between the two runs.  Because of the constraint in production capacity, the second run shows a much slower rise in sales and a later peak, and the total time over which sales are made is longer.
