(project2.mdl)



There are two reasonable ways to shut down the project model.  One is simply to stop simulating when the project is done.  You can do this by writing a different equation for FINAL TIME.  The approach we will take here is to stop activity on project completion.  We add in the concept project  is  done and make a connection from that to work flow.

The dependence of project is done on Work Accomplished rather than Work  Remaining will provide us with a mechanism for descoping the project if there are schedule or budget problems.  We add the equations:

project is done = IF THEN ELSE(Work Accomplished >=

        initial project definition,1,0)

Units: Dmnl

work flow = IF THEN ELSE(project is done,0,100)

Units: Drawing/Month

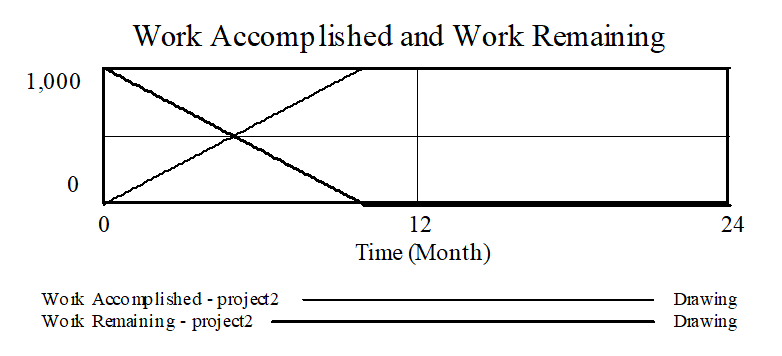

This yields the results:

Finished on time, and on budget.  A project manager's dream, and the basic model used in most project management software.
