SMOOTH3(input,delay time) 3rd order exponential SMOOTH SMOOTH3I(input,delay time,initial value) 3rd order exponential SMOOTH with Initial |
Scroll Prev Top Next More |
Returns a 3rd order exponential smooth of the input. Equivalent to the equations:
SMOOTH3=INTEG((LV2-SMOOTH3)/DL,
input)
LV2=INTEG((LV1-LV2)/DL,input)
LV1=INTEG((IN-LV1)/DL,input)
DL=delay time/3
SMOOTH3I=INTEG((LV2-SMOOTH3I)/DL,
initial value)
LV2=INTEG((LV1-LV2)/DL,
initial value)
LV1=INTEG((IN-LV1)/DL
initial value)
DL=delay time/3
NOTE The SMOOTH3 function does not conserves material when the delay time is changing. It is intended to be used for information delays.
Units: SMOOTH3(units,time) --> units
SMOOTH3I(units,time,units) --> units
The input units match the output units. The units of delay time must match those of TIME STEP. For SMOOTH3I units for the initial value must match those of the input.

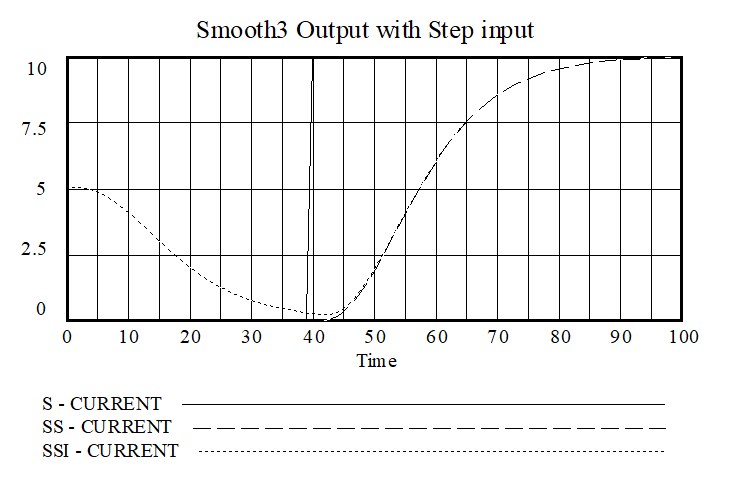

Example
S = STEP(10,40)
SS = SMOOTH3(S,20)
SSI = SMOOTH3I(S,20,5)
See also: DELAY3, SMOOTH, SMOOTH N
Sample model: SMOOTH 1 3 N.mdl and SMOOTH 1 3 PLE.mdl in FunctionExamples
