ØClick on Rabbit Population to select it into the workbench.
ØClick on the Control Panel button to bring the Control Panel to the front.  Click the Datasets tab to open the Datasets Control and check that both runs are loaded in the right hand column.

The last run you made (growth) is loaded first (at the top of the dialog).  Most Analysis tools act on both datasets, allowing comparison of behavior from both runs.

ØClick on the Graph tool.

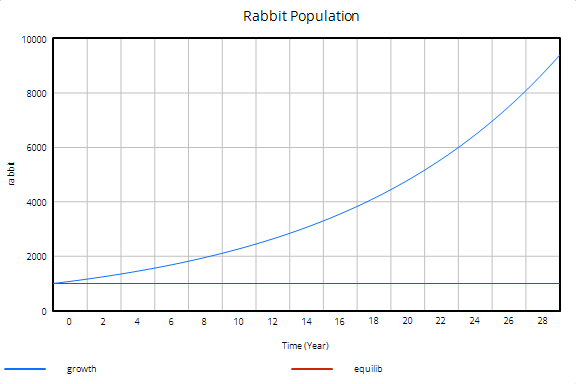

A graph will be generated showing both runs (see below).



ØPress the Del key or click the Close  button to remove the graph.
ØNow click on the Causes Strip tool.

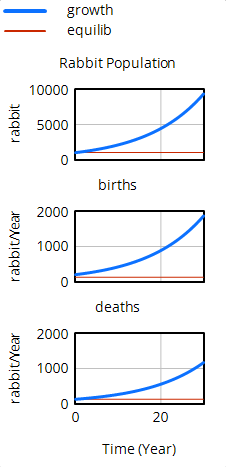

A strip graph is generated showing Population and its causes births and deaths.
