Changing Lookups is done by opening the Lookup editor and modifying the Lookup there.  As you make modifications the model will be repeatedly simulated and the results displayed.

ØDrag the slider underneath desired strength ratio 1 till it has about 2 as its value.
ØClick on fraction armament capacity used 1.

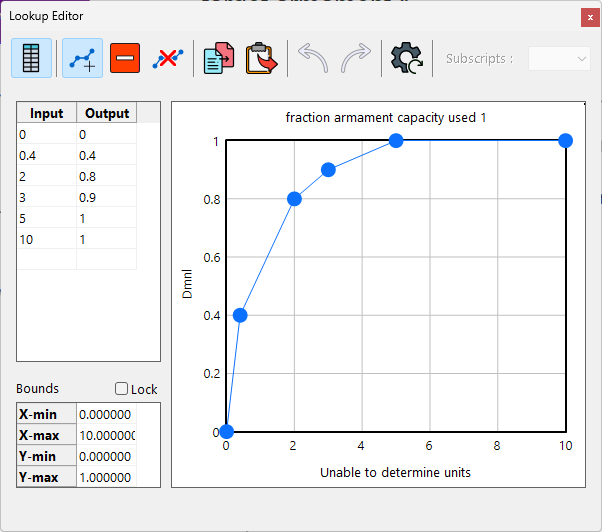

The Lookup editor will open.

The Lookup editor in SyntheSim mode has a Reset button instead of close button.  Each time you make a change to the values in the lookup the model is simulated so there is no way to cancel the change.  The Reset button will put the values back to the original model values.

This Lookup has a reference line (appearing in grey) along which the fraction of resources indicated are used.  The graph itself should always lie at or below this reference line.

ØPosition the mouse over the third point on the graph and then drag this point up toward the reference line.

Watch the behavior of the variables as the point moves.  You can move the Lookup editor by dragging its title bar if you want to expose other variables.

ØClick on the Close button to close the Lookup Editor.
