The Loops tool displays a list of all feedback loops passing through the Workbench Variable.  The list is ordered from the shortest loop (the one involving the least number of variables) to the longest loop.  This provides useful summary information on model interactions. Only loops of length less than 32 variables are searched for. The Loops tool has no options.

If you right click your mouse on the loops tool, you have the option of displaying the Shortest Independent Loop Set (SILS)1 for your model.

SILS_right_click_menu



Loops Output

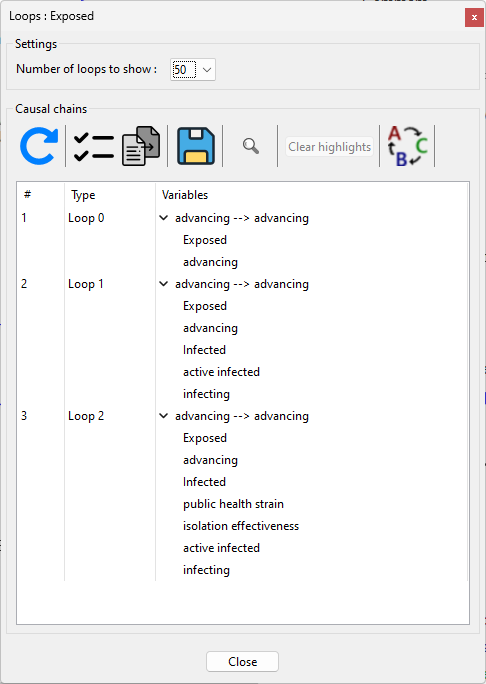

Each time you invoke the Loops tool, Vensim creates a window listing the loops found and their length.

loops_tool_sample_output

Drag and drop is enabled for this loops tool. If you unlock the sketch, you can drag a loop from the tool and place it on the sketch. Vensim will generate the diagram for you.



Toolbar functions

icon_refresh

Refresh : This button refreshes the list of loops.

icon_select_all

Select all : This selects all the loops so that they can be copied to the clipboard.

icon_copy

Copy : Copies the selected loops to the clipboard.

icon_save

Save : Saves a text file containing the loops.

icon_search

Search : This searches for the currently selected variable in the model.

button_clear_highlights

Clear highlights : This clears any actively highlighted loops on the sketch.

icon_legacy_loops

Legacy tool : This displays the older format loop tool output (from Vensim versions lower than 10.2).

Restrictions:

The Loops tool will not list loops involving more than 32 intermediate variables.

Selecting a loop in the output will attempt to highlight it on the sketch.

For large models, there can be a surprisingly large number of loops.  Under these circumstances the Loops tool can take a long time to complete operations.  If more than 50 loops are found you will be asked if you want to see more than the first 50.



1. The SILS algorithm was initially developed by Rogelio Olivia, more detail can be found at http://people.tamu.edu/~roliva/research/sd. Ventana would like to thank Rogelio for his work on this, and also asknowledge the assistance provided by Serafina Middleton and Mohammad Motamed.
